Products Description

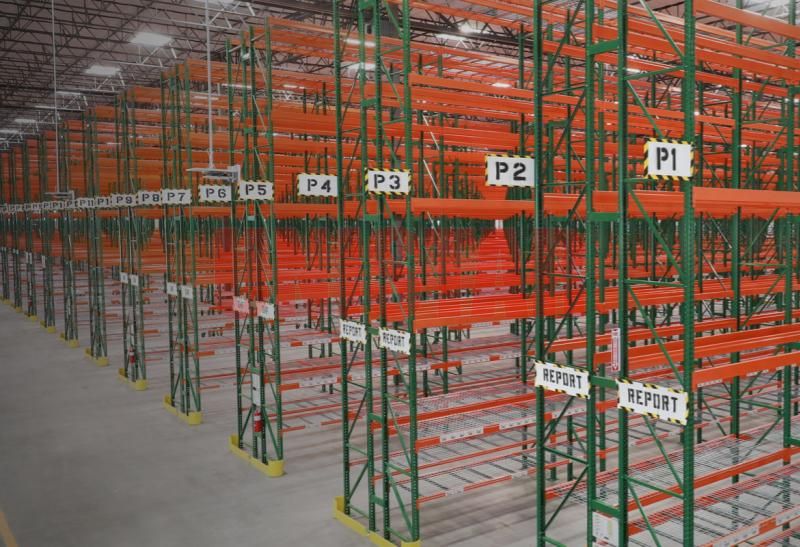

Teardrop Pallet Racking System uses teardrop-shaped upright perforations and hook-in beam connectors commonly specified in North American warehouse projects. The beam levels can be repositioned without changing the complete rack structure, making the system suitable for changing pallet heights.
Unistar supplies teardrop upright frames, step beams and compatible wire mesh decks for warehouses in the United States and other American markets. Component dimensions and connector compatibility must be confirmed before supplying additions to an existing rack system.
Teardrop Pallet Racking System Main Components

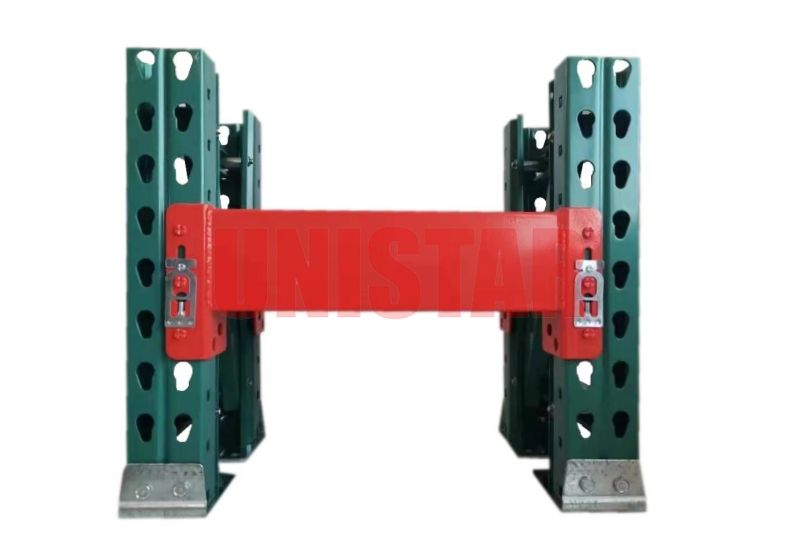

Teardrop-perforated upright columns
Horizontal and diagonal frame bracing
Hook-in step beams

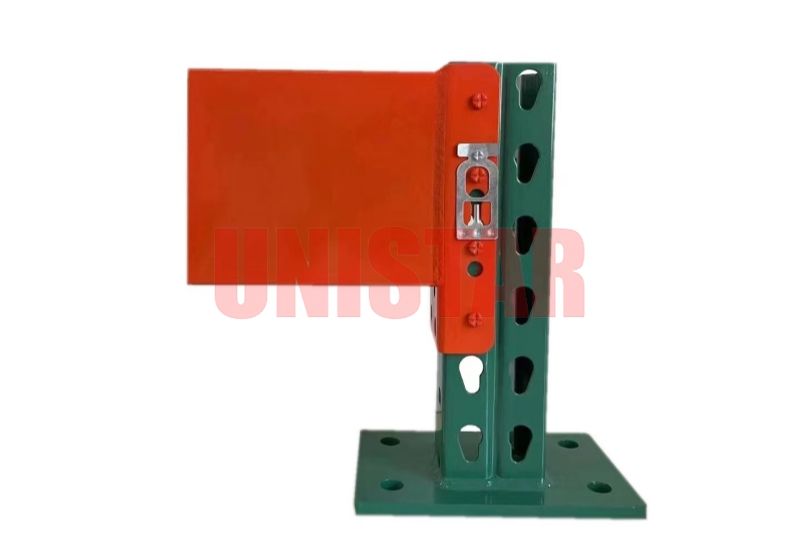

Beam safety locks
Baseplates and floor anchors

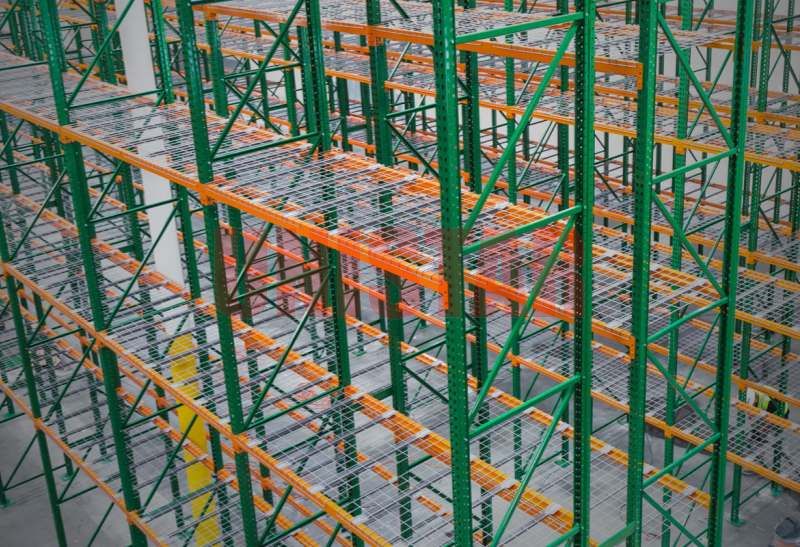

Wire mesh decking
Pallet support bars
Upright and end-of-row protection
Teardrop Pallet Racking System Characteristics
| Characteristic | Current Unistar Range |
|---|---|
| Beam adjustment | Hook-in adjustable beam levels |
| Common beam type | Step beam |
| Decking option | Wire mesh deck |
| Load capacity | Approximately 1–4 tonnes per level |
| Common market | United States and parts of South America |
| Color options | Blue or green frames with orange beams |
Compatibility and Design Checks of Teardrop Pallet Racking System
Existing upright-hole shape and spacing must be measured.
Beam connector dimensions must match the upright.
Beam length is selected from pallet width and pallets per level.
Frame depth must match pallet depth and required overhang.
Load capacity depends on beam span, beam profile and level spacing.
Seismic requirements must be confirmed for the project location.
Replacement components should not be assumed to be universally interchangeable.
