Cantilever Racking

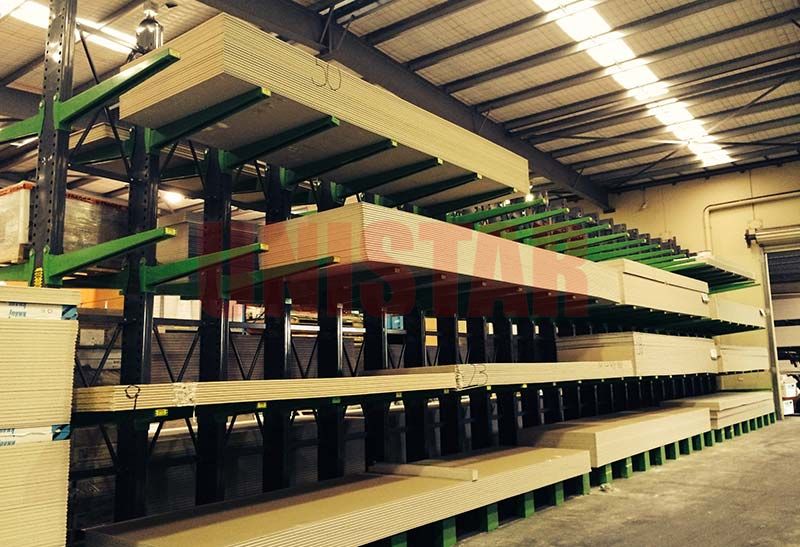

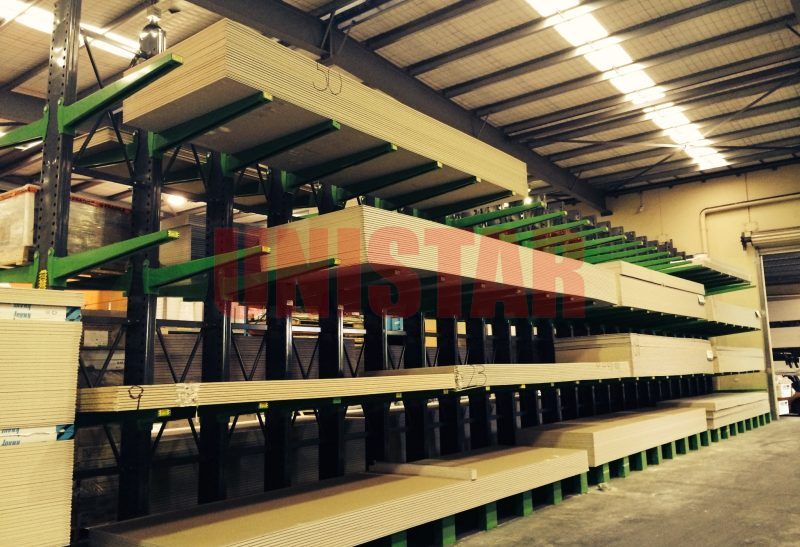

● Popular to stock wood, timber, lumber, long bars, pipes, construction material industry.
● Operated with forklifts.
● Single side and double side are both available.
Products Description
Heavy Duty Cantilever Racking System provides open-front storage for pipes, timber, steel bars, profiles and other long or irregular materials. Horizontal arms extend from central columns without front uprights obstructing the loading face.
Unistar supplies single-sided and double-sided cantilever racks with roll-formed or H-beam columns. Indoor powder-coated and outdoor hot-dip galvanized configurations are available according to the storage environment.

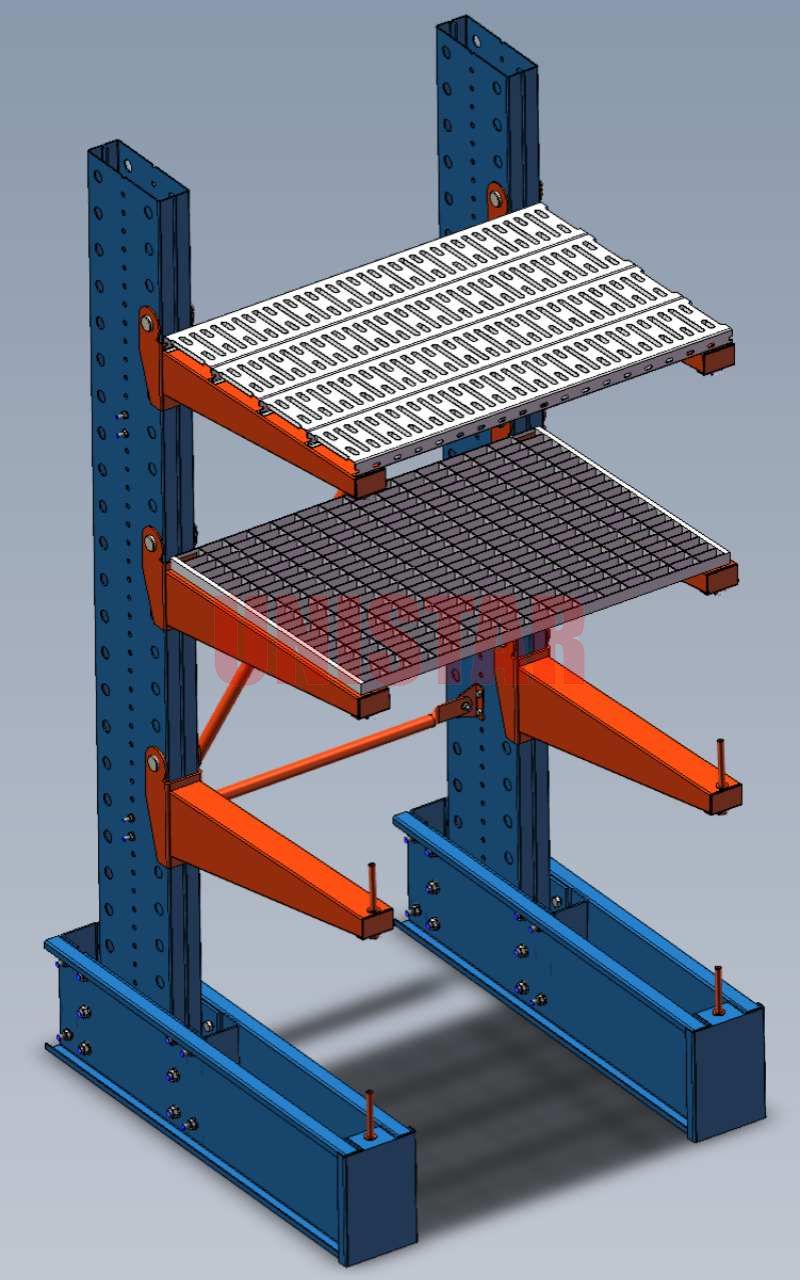

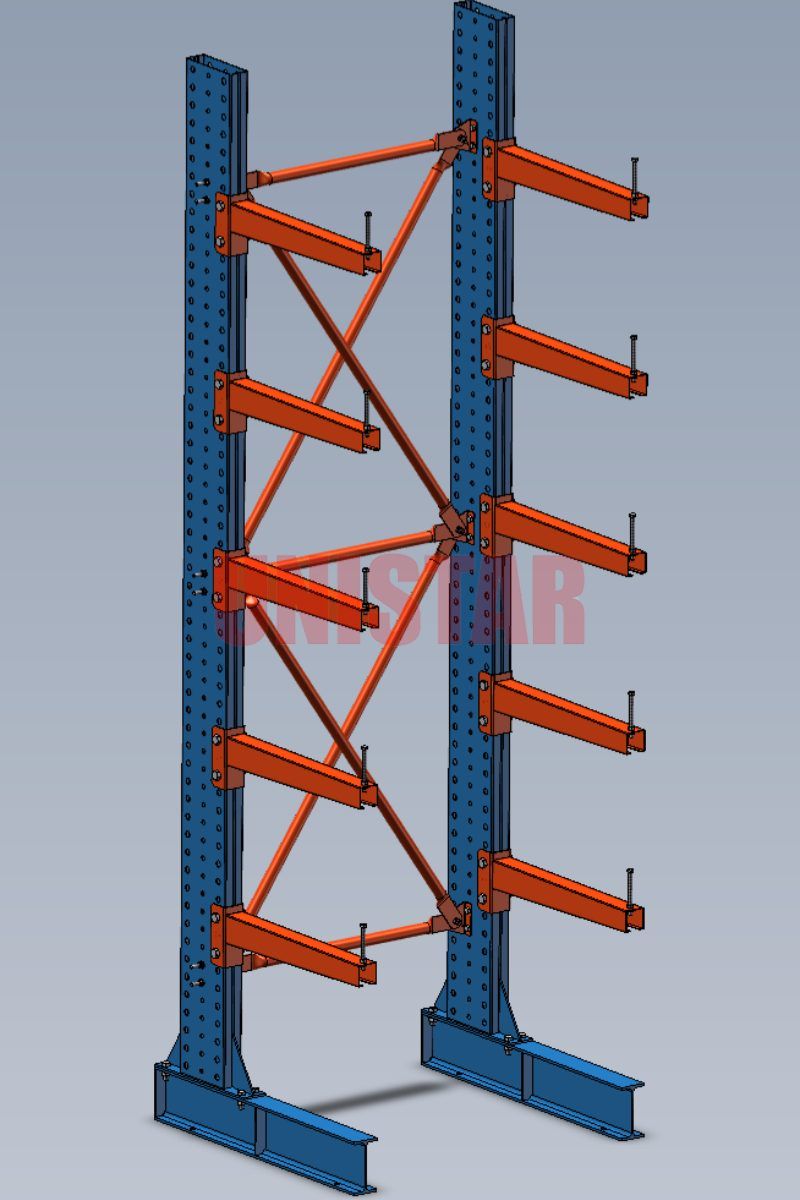

Product Structure of Heavy Duty Cantilever Racking System
Vertical columns support the cantilever arms.
Arms can be positioned at different heights for different material sizes.
Base sections support the lowest storage position and anchor the rack.
Horizontal and diagonal bracing connects adjacent columns.
End stops can be installed on arms when required.
Single-sided racks are suitable for installation against walls.
Double-sided racks provide access from both sides.
Suitable Materials of Heavy Duty Cantilever Racking System
| Material | Selection Consideration |
|---|---|
| Timber and lumber | Bundle length, weight and outdoor exposure |
| Steel pipes | Diameter, bundle weight and rolling prevention |
| Bars and profiles | Material length and required arm spacing |
| Sheet materials | Supporting surface and handling method |
| Furniture components | Product protection and arm finish |
| Construction materials | Outdoor finish and forklift access |
Heavy Duty Cantilever Racking System Configuration and Load Design

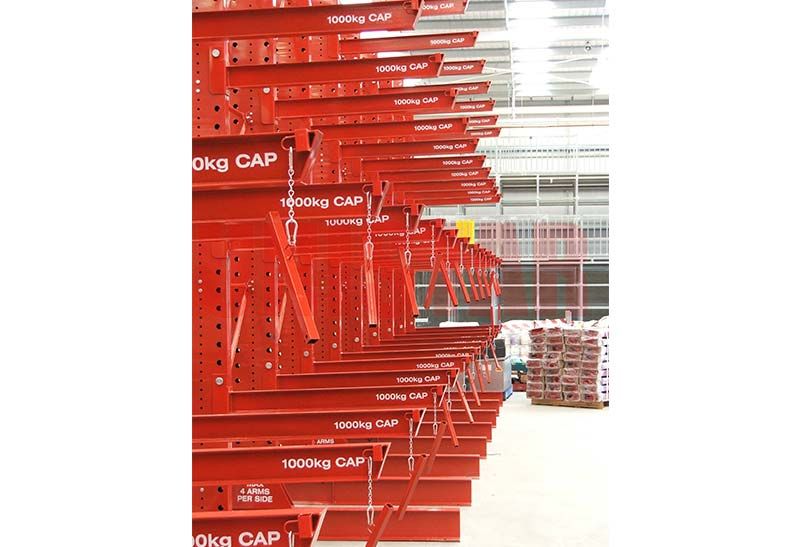

Current Unistar designs can support up to 1,000 kg per arm, subject to arm length and load position.
Arm length must match material depth and bundle dimensions.
Column spacing is determined by product length and allowable overhang.
H-beam columns are available for heavier applications.
Roll-formed columns can be considered for other load ranges.
Powder coating is suitable for normal indoor warehouses.

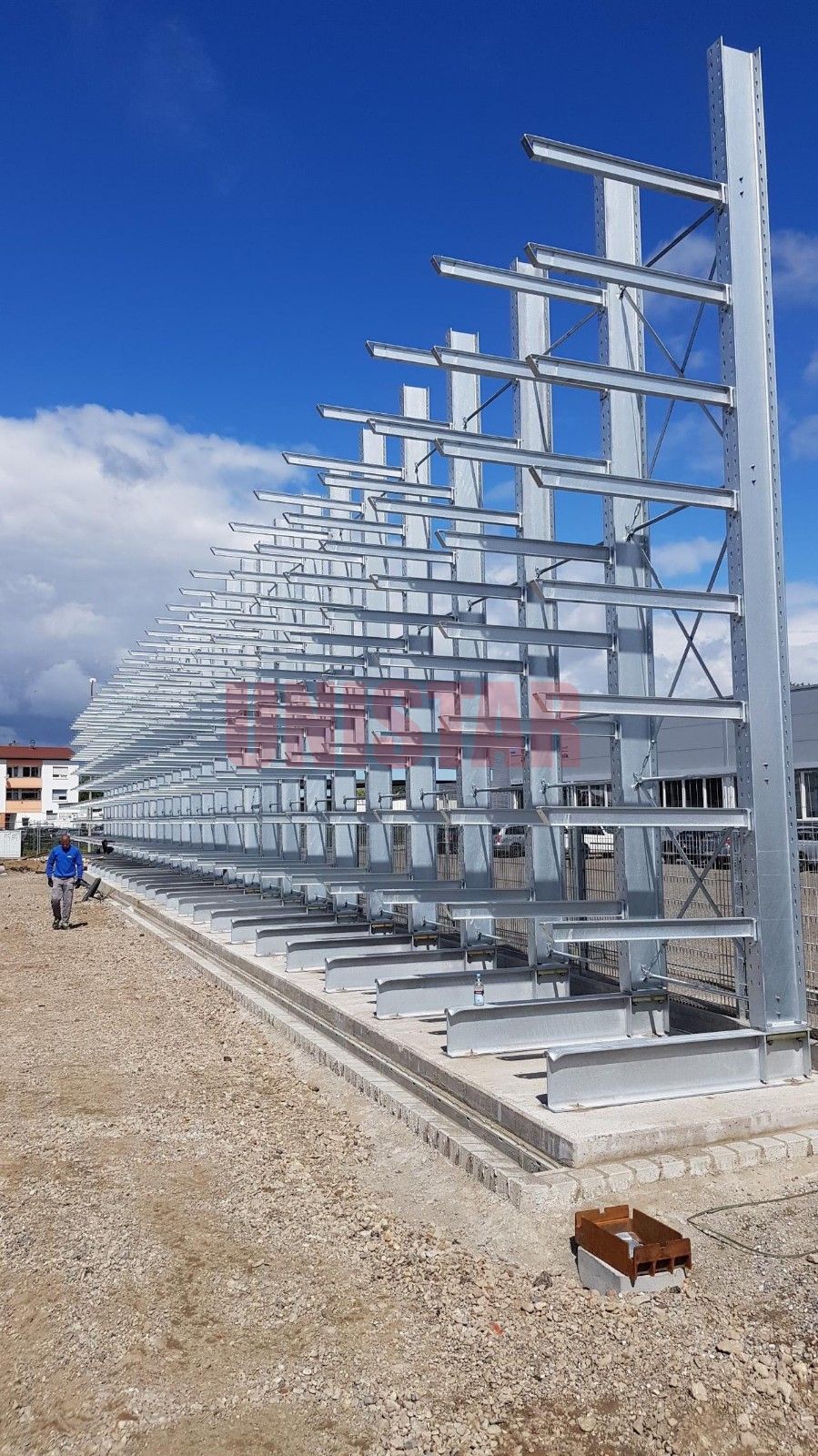

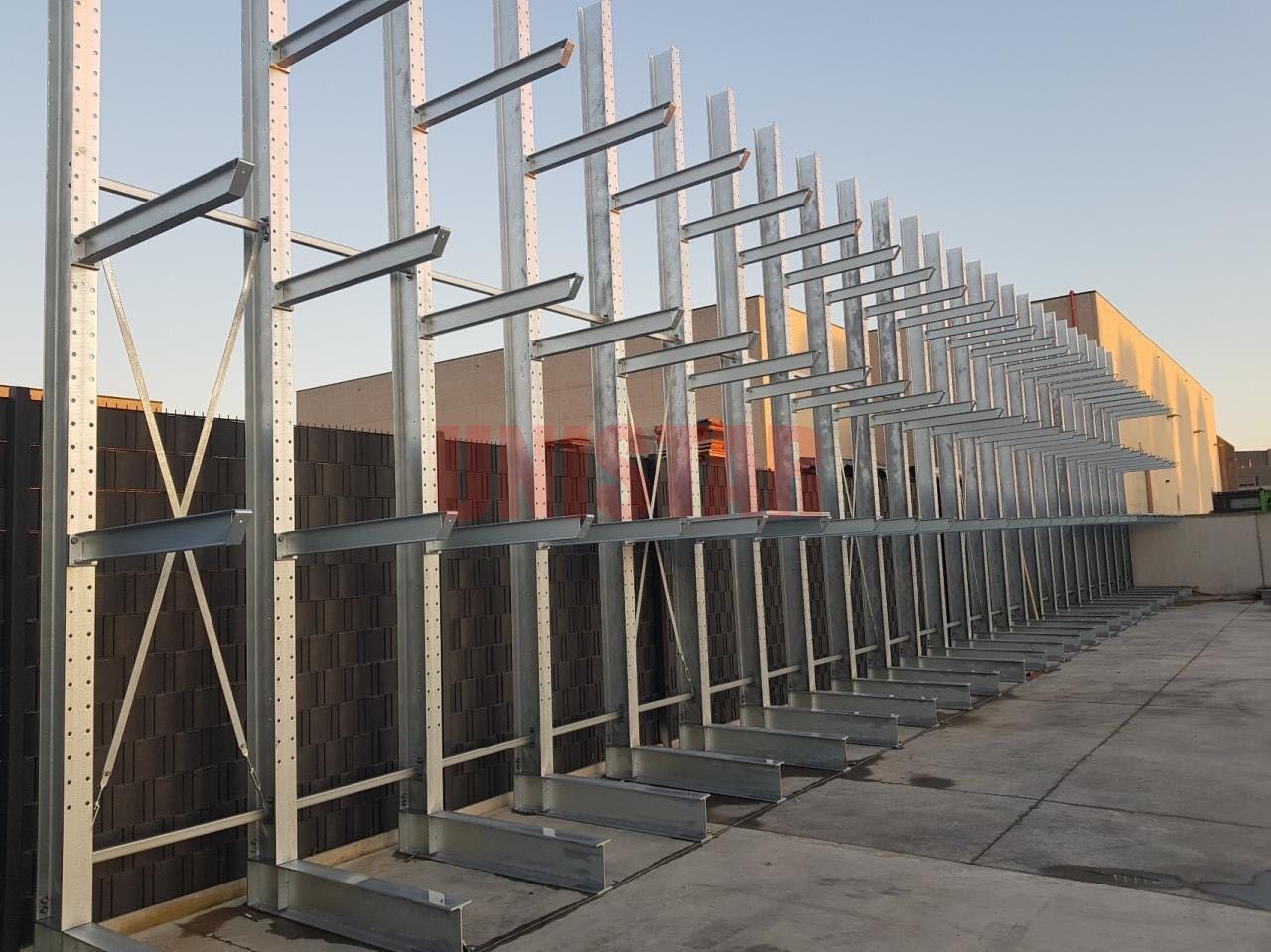

Hot-dip galvanizing is available for outdoor yards and wet environments.
