Products Description

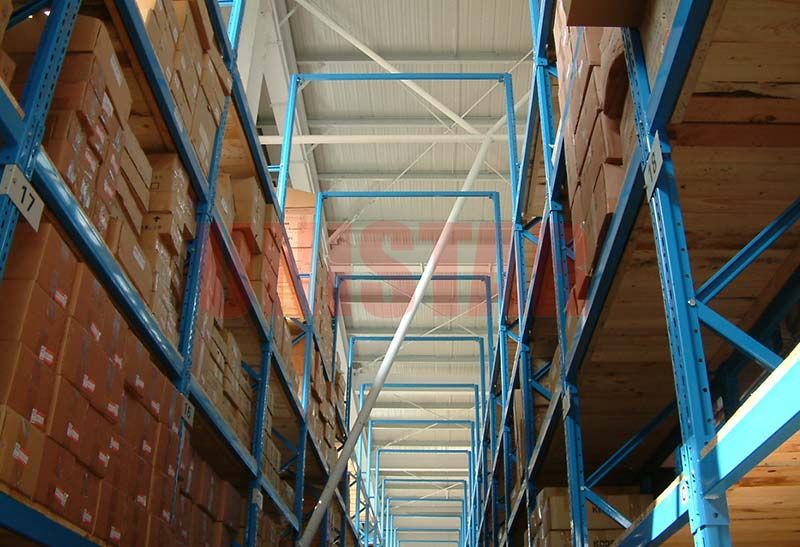

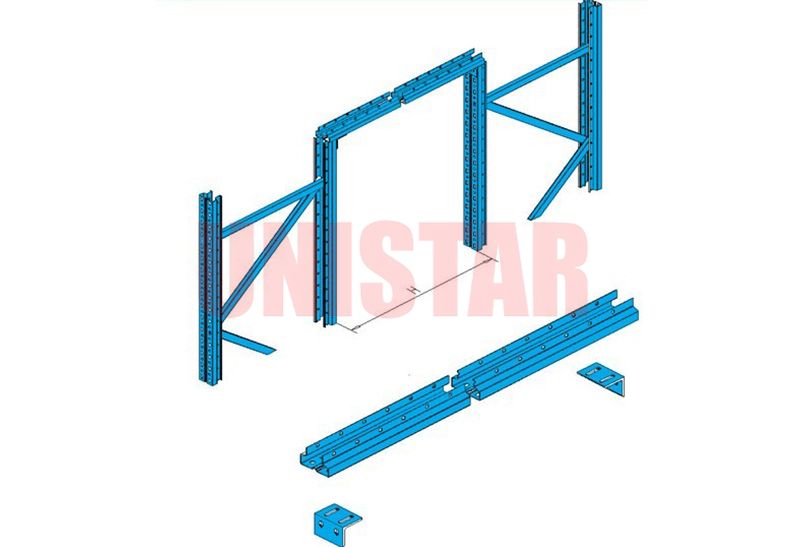

Pallet Rack Top Tie Beam connects the upper sections of opposing rack rows across an aisle. It can be used where the engineered rack layout requires additional restraint, alignment or stability for tall and narrow rack structures.
Top ties must be included in the structural design rather than added as a general accessory. Their position must also remain clear of pallets, forklifts, lighting, sprinklers and other overhead systems.
Main Functions of Pallet Rack Top Tie Beam
Connect opposing rack rows at the top
Help maintain rack alignment
Provide additional restraint where structurally required
Support selected tall-rack configurations
Coordinate stability across narrow aisles
Reduce excessive independent movement between opposing rows
Design Considerations of Pallet Rack Top Tie Beam
| Design Factor | Required Check |
|---|---|
| Rack height | Determines potential need and tie position |
| Aisle width | Determines tie span |
| Upright profile | Determines connection design |
| Forklift height | Tie must clear the mast and load |
| Pallet height | Top loads must remain below the tie |
| Sprinklers | Required clearance must be maintained |
| Lighting | Tie location must avoid obstruction |
| Seismic design | Structural engineer must confirm arrangement |
Pallet Rack Top Tie BeamInstallation Requirements
Use only the connection details provided for the rack system.
Do not drill or weld rack uprights without engineering approval.
Install ties at the specified height and bay positions.
Check bolt torque after installation.
Maintain required overhead operating clearance.
Inspect ties and connections during rack inspections.
Replace distorted components after impact or structural movement.
Information Required for Quotation
Rack elevations
Rack height
Aisle width
Upright profile
Top beam-level height
Maximum loaded pallet height
Forklift model and mast height
Sprinkler and lighting positions
Required tie quantity
Project location and design standard
