Wire Mesh Deck
Fit box beams or step beams, to support pallets or cartons.
Load Capacity: 500kg~3000kg per level.
Products Description

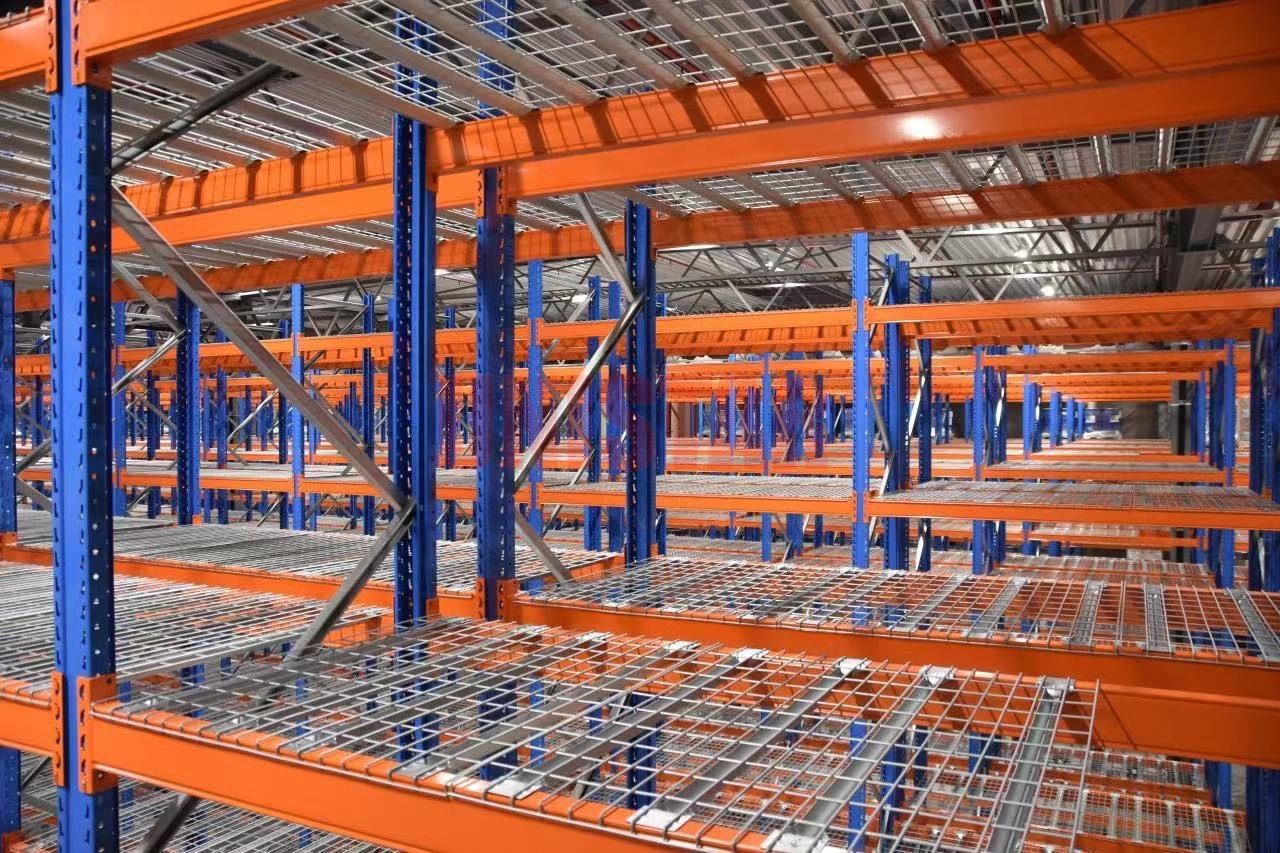

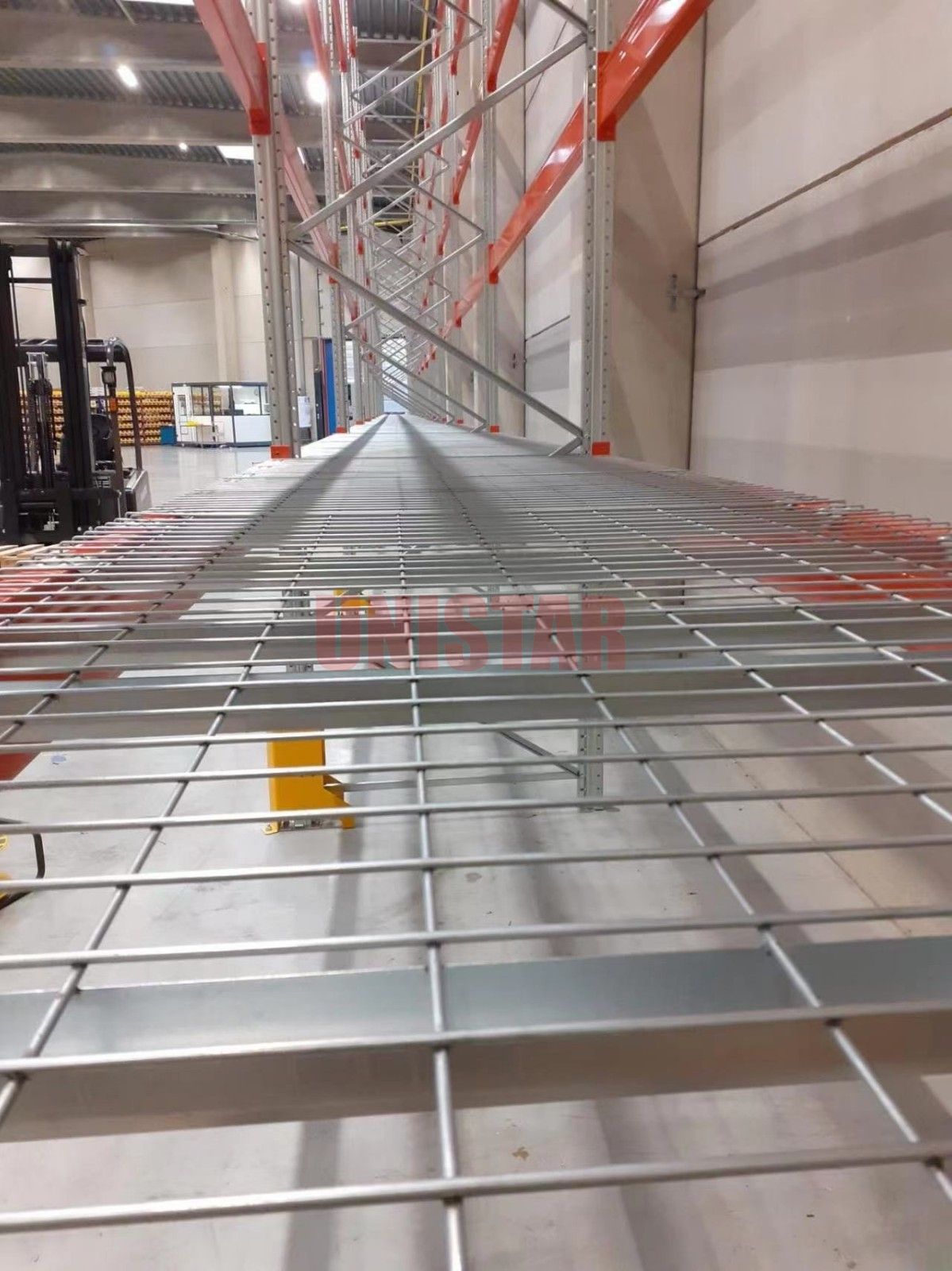

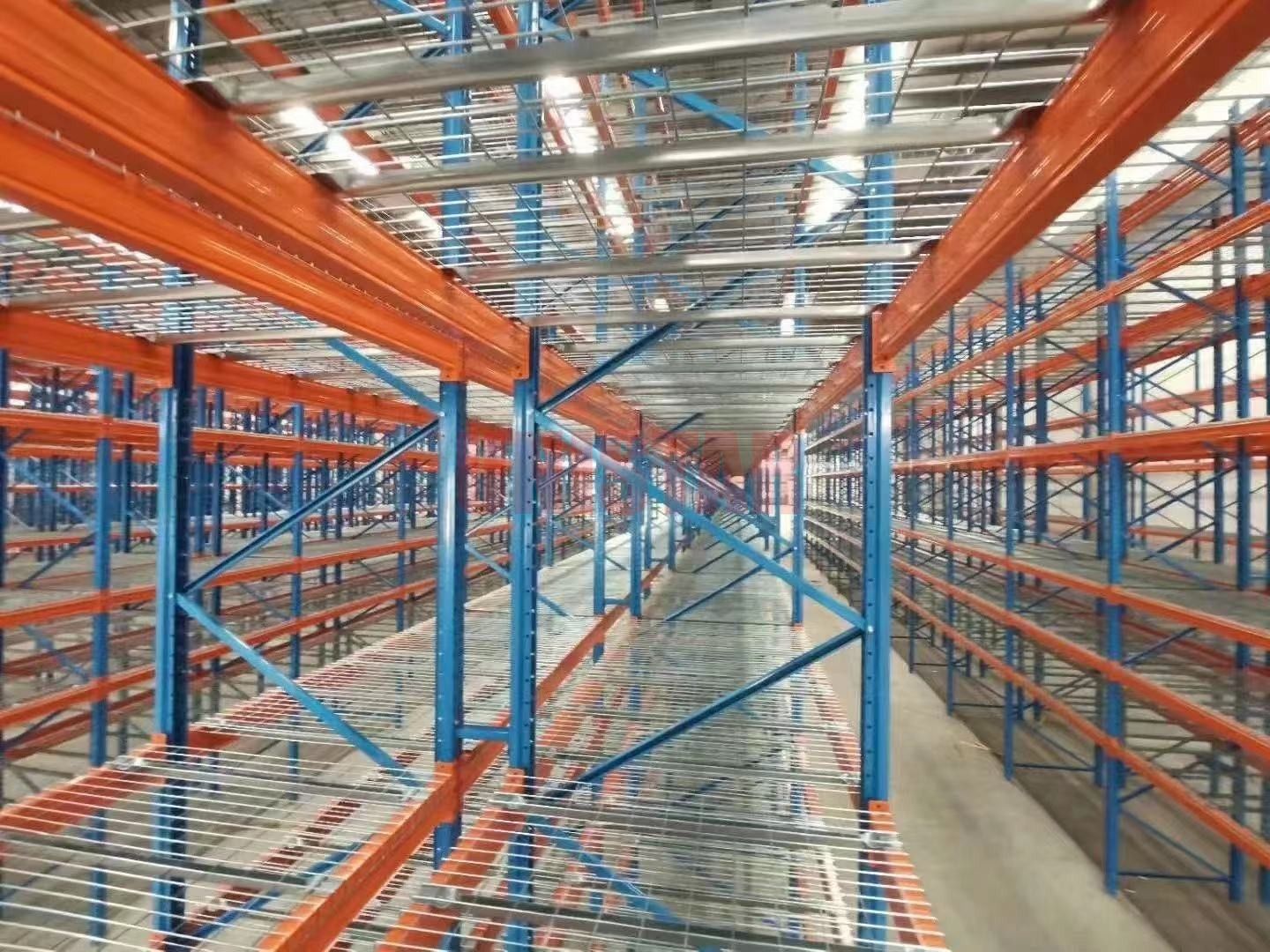

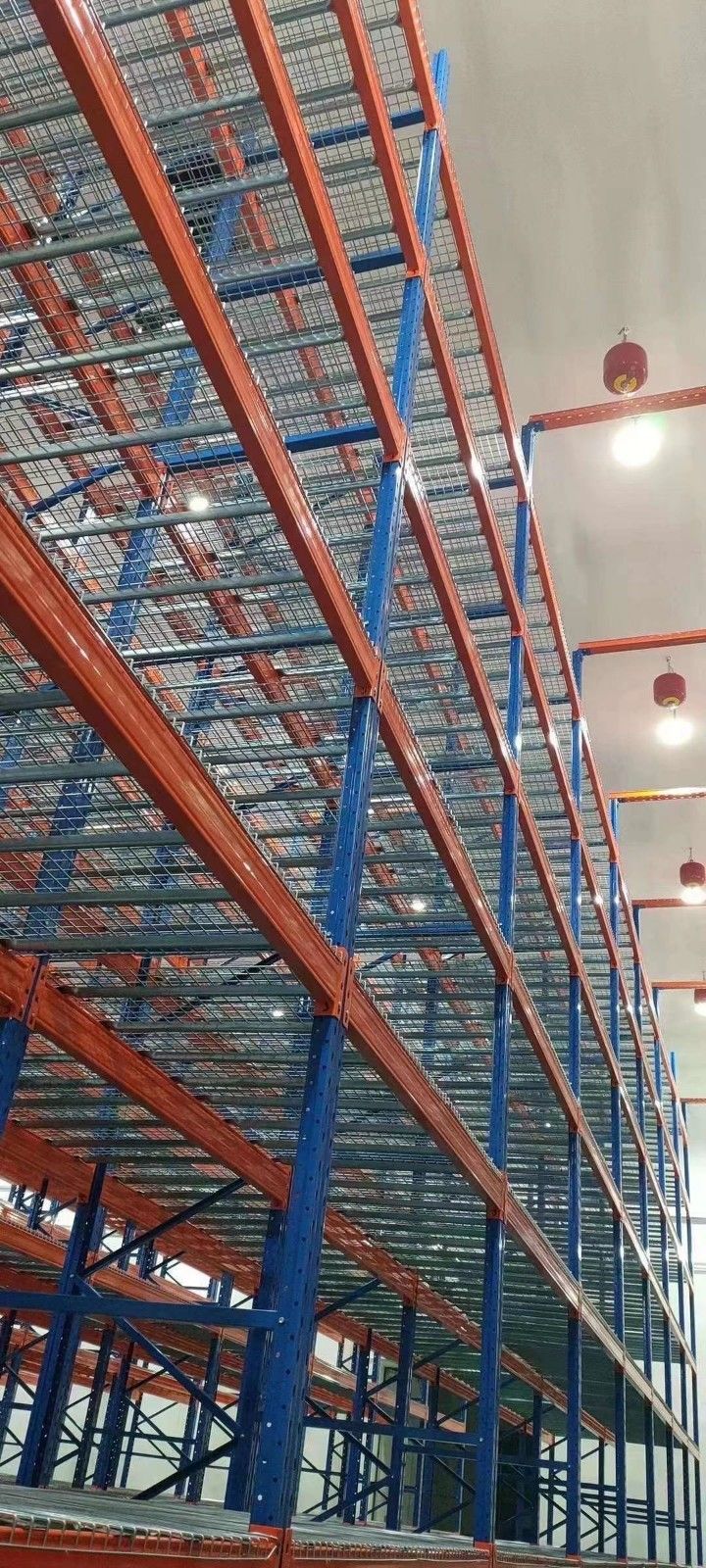

Pallet Rack Wire Mesh Decking provides an additional load-supporting surface across pallet rack beams. It can support pallets, cartons and manually placed goods while keeping the storage level open and visible.
Unistar supplies reinforced wire mesh decks for step beams and box beams. The current product range supports 500–3,000 kg per level, depending on deck dimensions, support channels, wire configuration and load distribution.

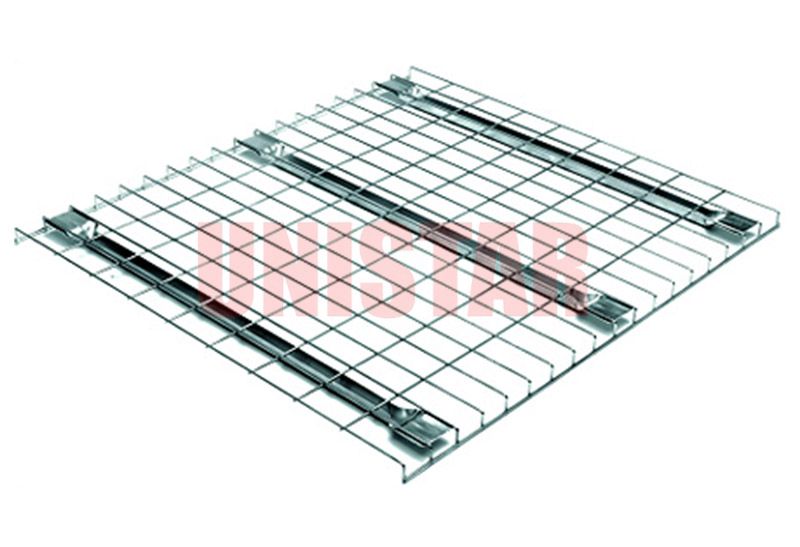

Pallet Rack Wire Mesh Decking Structure
Welded steel wire mesh panel
Reinforcement channels beneath the mesh
Front and rear deck edges
Beam-supporting channel ends
Galvanized surface finish
Optional powder-coated finish
Custom width and depth
Configurations for step or box beams
Pallet Rack Wire Mesh Decking Selection Factors
| Factor | Information to Confirm |
|---|---|
| Beam type | Step beam or box beam |
| Rack width | Clear distance between uprights |
| Frame depth | Front-to-rear rack dimension |
| Load | Load per deck or per level |
| Stored unit | Pallet, carton or loose goods |
| Pallet orientation | Direction of pallet runners |
| Mesh opening | Selected according to stored item size |
| Support channels | Quantity selected from load and deck width |
Pallet Rack Wire Mesh DeckingAvailable Customization
Deck width and depth
Wire diameter
Mesh opening
Number of reinforcement channels
Waterfall, flush or project-specific edge design
Channel profile
Galvanized finish
Powder-coated finish
Load-capacity verification
