Double Deep Racking
Double deep racking system is operated with Double Deep Forklifts. The Basic Information needed from clients: Pallet Dimension/Pallet Height including goods on it/Pallet Weight.
Products Description

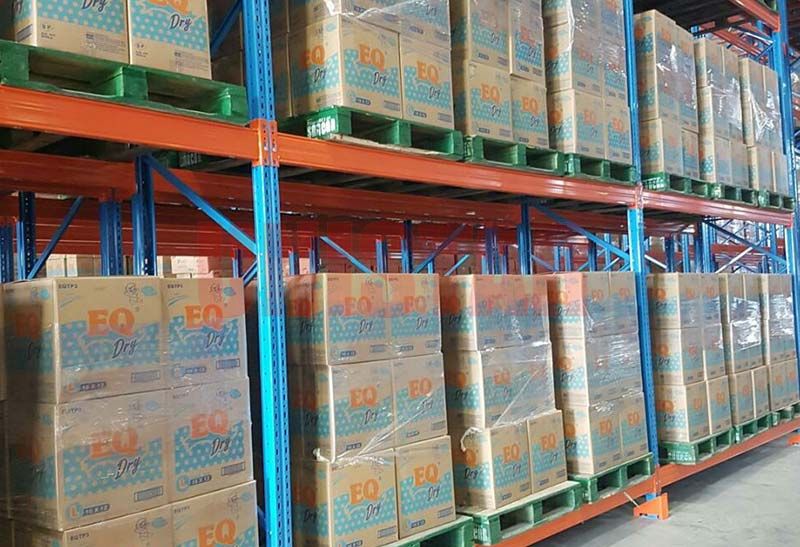

A Double Deep Pallet Racking System stores pallets two positions deep instead of one, reducing the number of forklift aisles required within the same warehouse area. It is suitable for facilities that need more pallet positions than selective racking can provide but still require faster access than drive-in or other deep-lane systems.
Unistar configures the rack structure around the pallet dimensions, loaded pallet height, unit load, warehouse clear height and deep-reach forklift specifications. In a suitable layout, double deep racking can increase storage capacity by approximately 50% compared with conventional selective pallet racking.
How Double Deep Racking Works

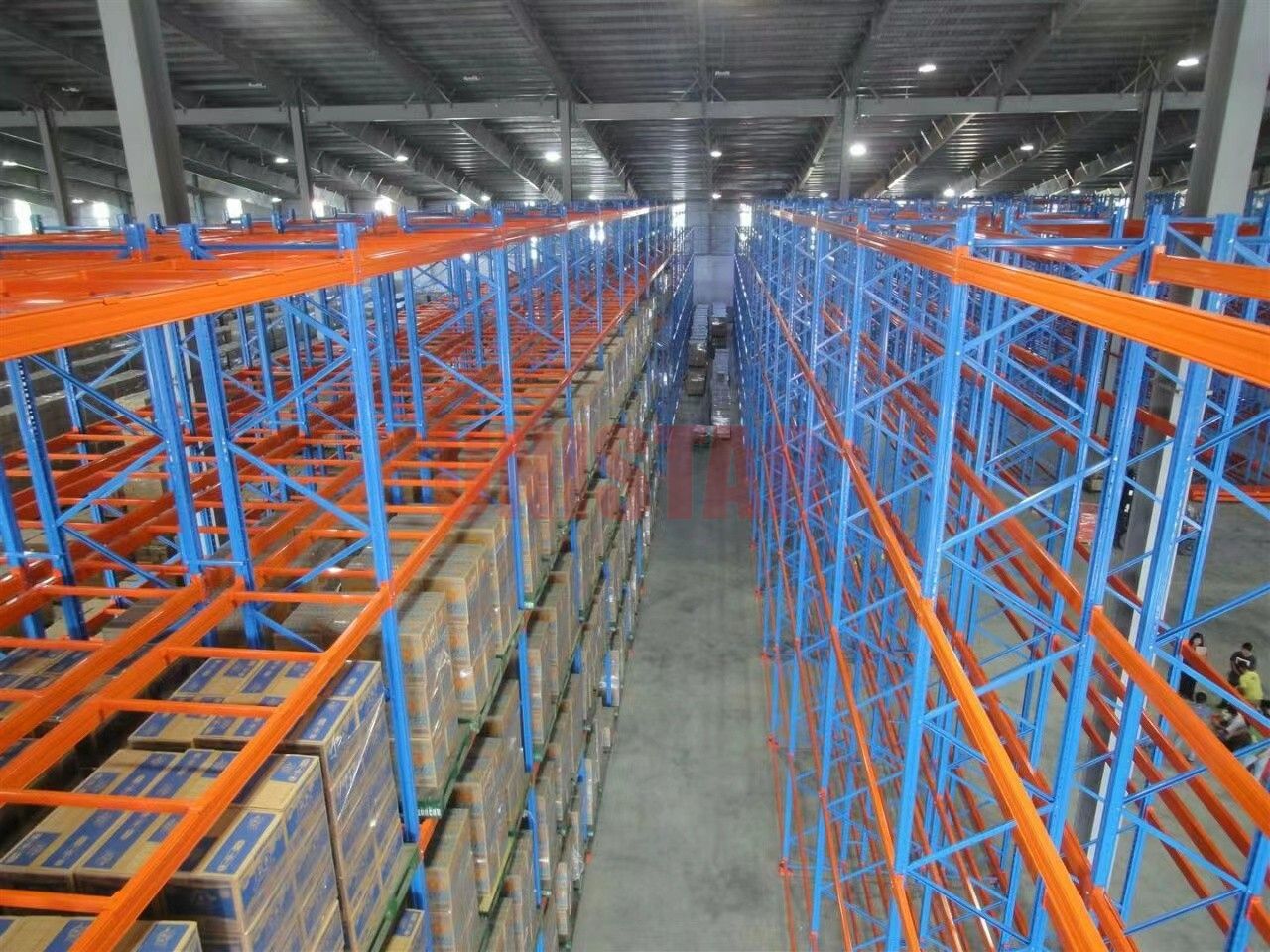

Two pallet rows are positioned back-to-back on each side of the aisle.
The front pallet is accessed directly from the operating aisle.

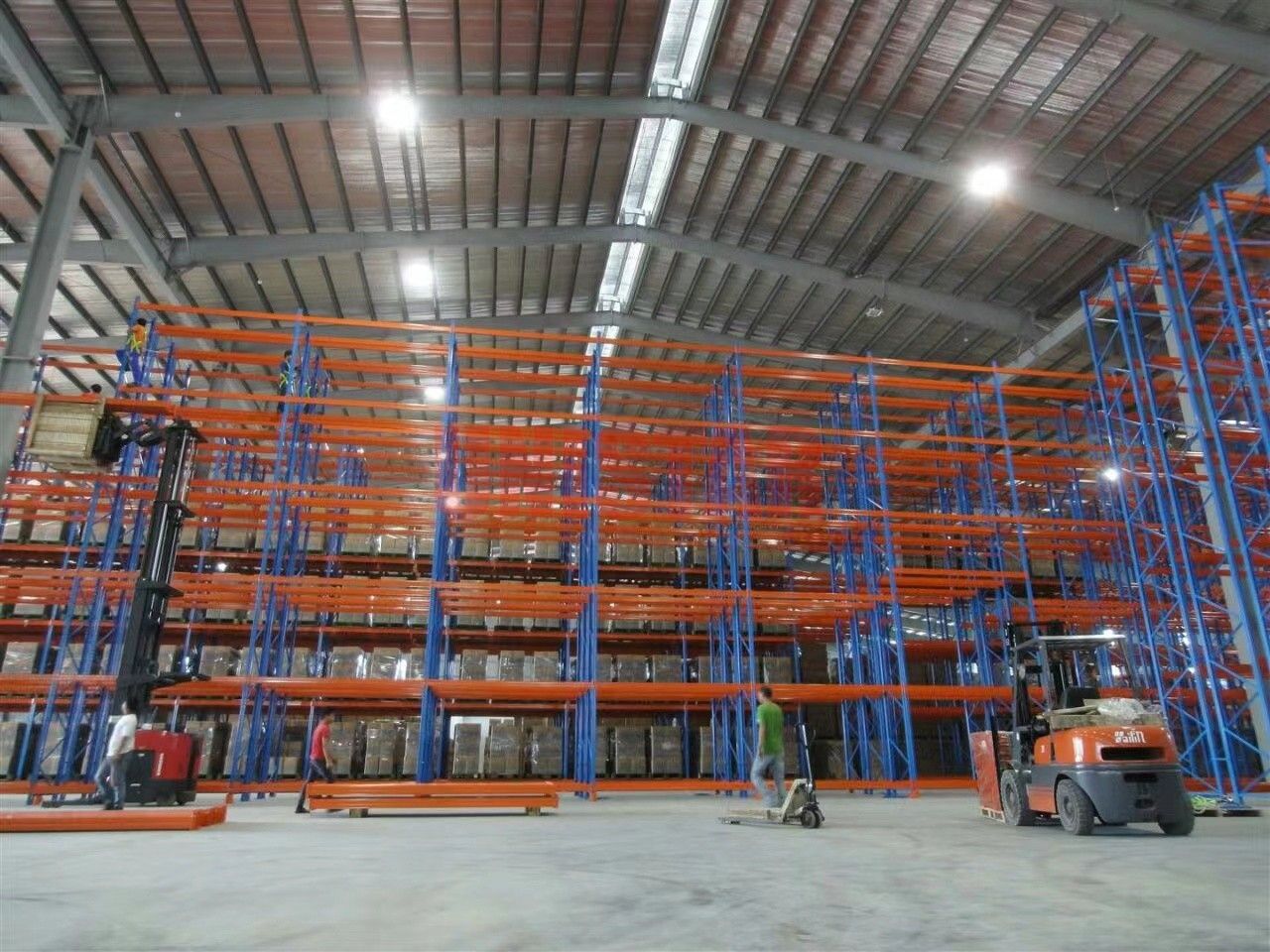

A deep-reach or pantograph forklift extends through the front position to handle the rear pallet.
The rear pallet cannot be retrieved until the front position is clear.
Beam levels remain adjustable for different loaded pallet heights.
Suitable Inventory and Operations
| Selection Factor | Suitable Condition |
|---|---|
| SKU profile | Multiple pallets of the same SKU |
| Pallet access | Partial selectivity is acceptable |
| Stock rotation | Strict FIFO is not required |
| Handling equipment | Deep-reach forklift is available |
| Warehouse objective | Increase pallet positions without using deep storage lanes |
| Typical facilities | Distribution centers, cold stores, manufacturing warehouses and reserve storage |

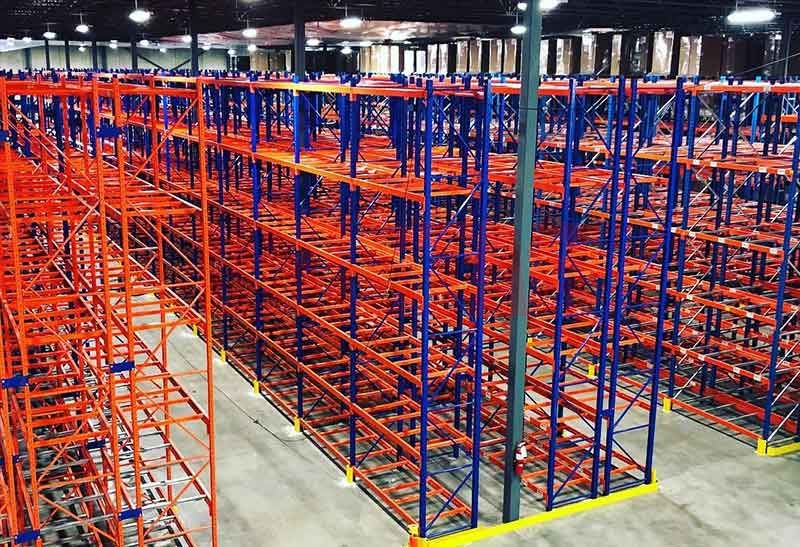

Double Deep Pallet Racking System Design and Configuration
Load capacity per level: generally below 4 tonnes, subject to the beam span and load distribution.
Maximum bay load: up to 30 tonnes with the appropriate upright profile and structural design.
Common configuration: two or three pallets per beam level.
Rack height: determined by warehouse clear height and forklift lifting capacity.
Frame and beam profiles: selected according to pallet load, bay width and level spacing.
Standard color option: RAL5015 blue frames with RAL2004 orange beams.
Safety accessories: upright protectors, pallet support bars, row spacers and back stoppers can be added where required.
Information Required for Quotation
Pallet width, depth and entry direction
Maximum pallet weight
Total loaded pallet height
Number of SKUs and pallets per SKU
Warehouse dimensions and clear height
Column positions, doors and fire-protection areas
Deep-reach forklift model, lift height and reach distance
Required pallet positions
Project location and applicable rack design standard
