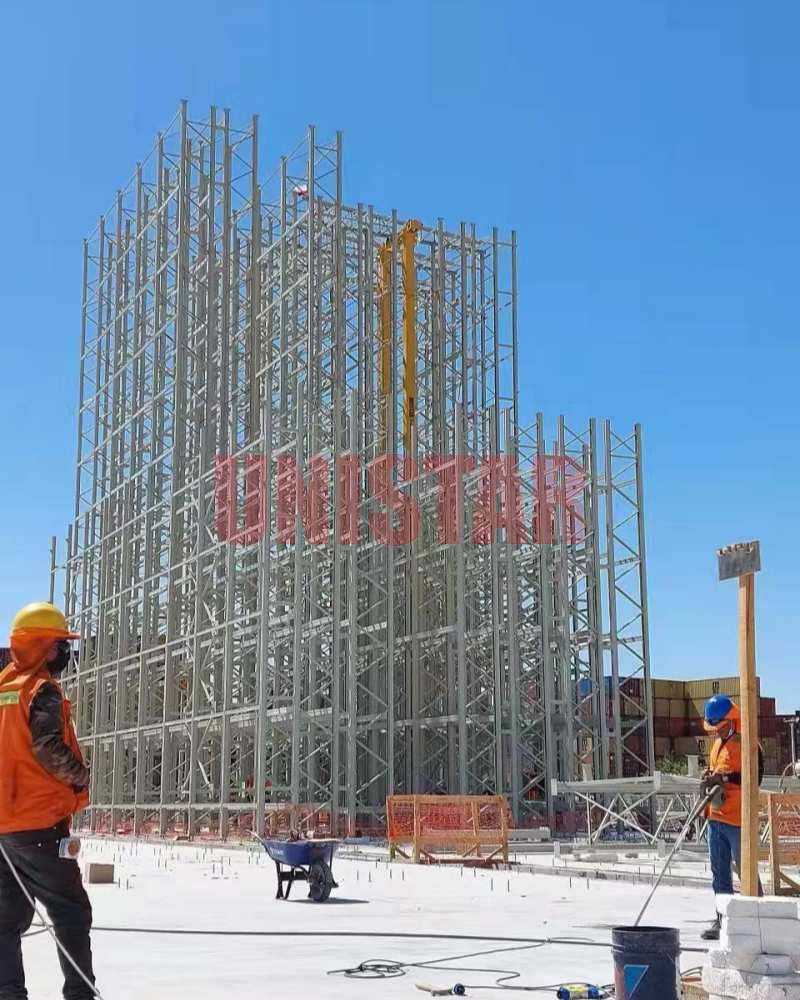

Rack Clad System (Self Support)

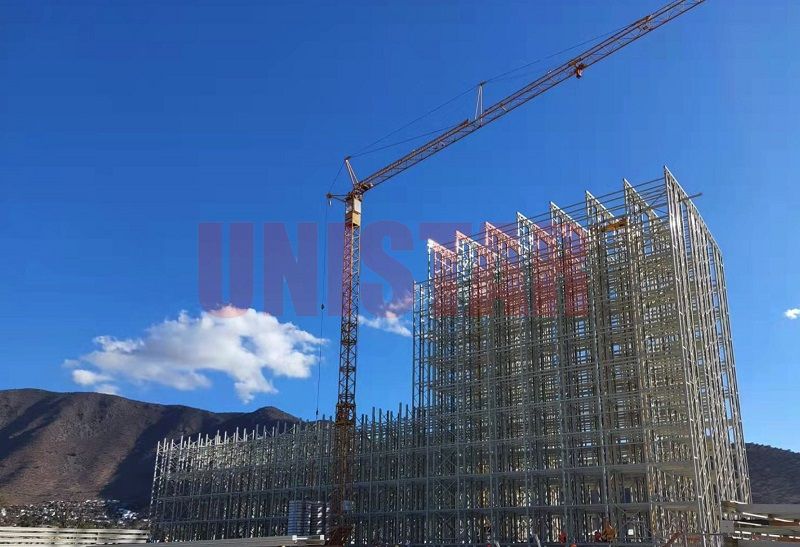

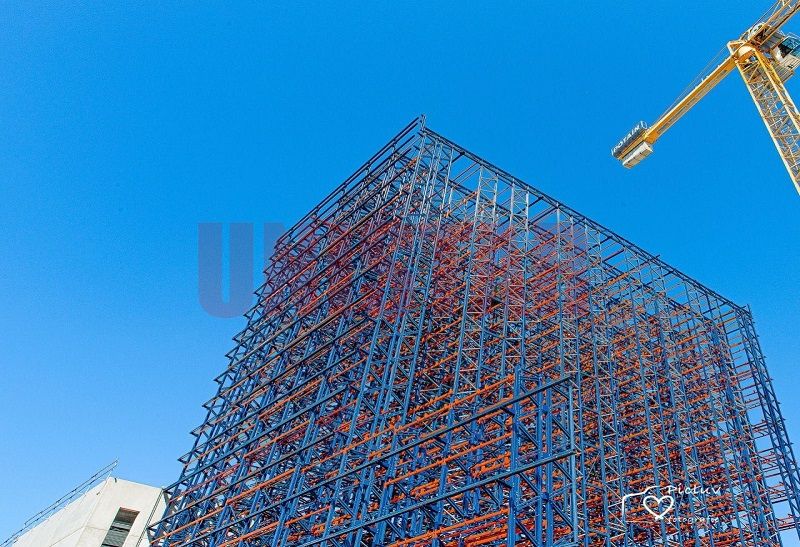

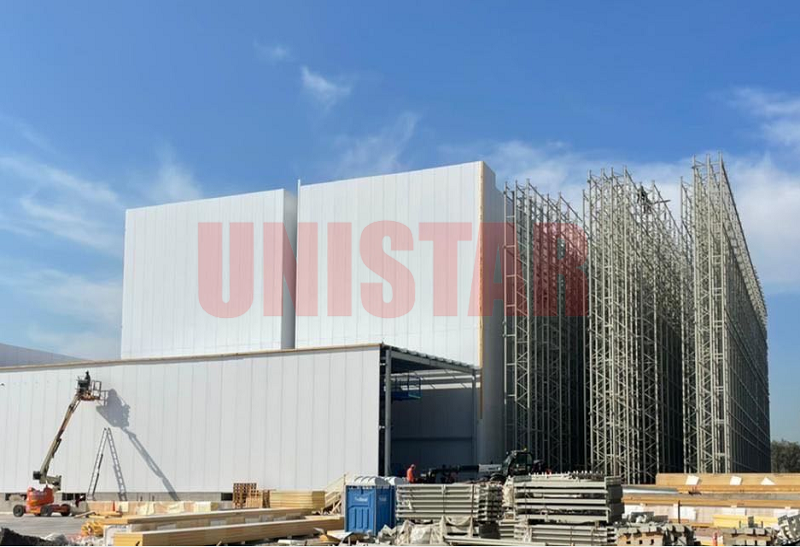

Clad rack warehouse is a structural system in which the storage racking serves as the primary load-bearing framework. In addition to supporting side panels, roof cladding, and external loads such as wind forces, the racking itself carries the weight of the stored goods. As a result, compared to conventional construction methods, rack-supported buildings require significantly less civil engineering work, streamlining installation and reducing overall costs.

Multi-rack warehouses can accommodate a wide range of storage configurations — from traditional pallet racking and drive-in/drive-through systems to fully automated storage and retrieval systems (AS/RS).

Inquire Now Next Product

Products Description

Rack Clad Warehouse System is a self-supporting warehouse structure in which the storage racking supports the stored loads as well as the roof and wall cladding. The rack, building envelope and material-handling system are engineered as one integrated structure.

Rack clad warehouses are suited to high-bay projects where vertical space, land use and construction coordination are major considerations. Unistar can design the rack structure for conventional pallet storage, drive-in layouts or automated storage and retrieval systems.

Structural Scope of Rack Clad Warehouse System

High-bay load-bearing racking
Roof and wall cladding support interfaces
Pallet storage positions
Horizontal and vertical rack bracing
Stacker-crane or shuttle interfaces
Conveyor input and output areas
Maintenance and access zones
Building service interfaces

Project Design Factors of Rack Clad Warehouse System

Design Factor	Required Assessment
Stored load	Pallet weight, dimensions and load distribution
Building loads	Roof, wall, wind and snow loads
Seismic condition	Site-specific structural analysis
Foundation	Soil and slab information
Building height	Rack stability and handling-equipment limits
Temperature	Ambient, chilled or frozen storage
Automation	Crane, shuttle and conveyor interfaces
Local compliance	Building and structural approval requirements

Advantages of Rack Clad Warehouse System

Space Optimization

Clad Rack warehouses maximize storage density through engineered vertical integration. Adjustable beam configurations and integrated AS/RS (Automated Storage & Retrieval Systems) achieve >85% volumetric efficiency, reducing land requirements by 40% versus conventional designs.

Operational Efficiency

Automated workflows accelerate material handling:

Robotic shuttles achieve 50+ pallet cycles/hour

70% reduction in manual retrieval operations

Seamless WMS integration minimizes processing delays

Durable & Secure Infrastructure

Engineered with industrial-grade components:

Structural steel (S355JR grade) with 10% design redundancy

EN 15635-compliant safety interlocks

Impact-resistant column guards (50kN rating)

Configurable Adaptability

Multi-format support accommodates evolving needs:

Adjustable beam levels (150mm increments)

Hybrid pallet compatibility (800–1,500mm widths)

Future-ready automation interfaces (AGV/AMR)

Rack Clad Warehouse System Applications

High-Performance Industrial Storage

Clad Rack Warehouses deliver optimized storage solutions for industrial operations requiring superior throughput. From manufacturing plants to distribution centers, the system enhances operational efficiency and productivity, enabling seamless management of substantial inventory volumes.

Enhanced Warehouse Management

By integrating warehouse structures with automated pallet racking systems, Clad Rack Warehouses significantly improve inventory control. The solution streamlines stock management processes, reduces operational errors, and ensures rapid, precise access to stored goods.

Large-Scale Inventory Optimization

For enterprises managing significant stock quantities, Clad Rack Warehouses provide essential storage capabilities. Automated storage and retrieval systems facilitate efficient organization and handling of bulk inventories.

Secure Storage for Valuable Assets

Clad Rack Warehouses offer reliable protection for high-value merchandise through robust construction and integrated safety features. Businesses benefit from assured safeguarding of critical inventory.

Cross-Industry Adaptability

Serving sectors from automotive to pharmaceuticals, the system's flexible design accommodates unique operational requirements across diverse industries, ensuring smooth integration with existing workflows.

Comprehensive Warehouse Solution

Clad Rack Warehouse systems represent an integrated approach to modern storage, combining space efficiency, operational productivity, asset security, and configuration flexibility.

For industrial and commercial enterprises seeking advanced, adaptable storage infrastructure, this solution addresses complex logistical demands. Contact us to explore customized implementation strategies for your operations.
